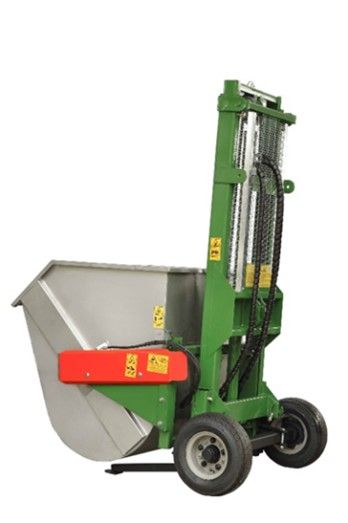

Lifter duplex
Lifter duplex
DESCRIPTION
The exclusive telescopic chassis made by high strenght special steel, allows to combine functionality with solidity during the job; besides the double effect hydraulic piston insures agility and safety.
The lifter can be applied to every type of tractor by 3-point linkage. The support on the ground is optimized by the iron slides supplied as standard or by the support wheels, applied to ensure greater stability during transport and for unloading maneuvers even on slopes, since the weight does not weight on the tractor.
The elevator with the application of a hydraulic tilting tank is an indispensable tool during the harvesting of the grapes to facilitate the operations of transporting the product from the vineyard to the collection hopper. In addition to the tilting tank, various accessories can be applied to make the lift versatile and functional, adaptable to any customer need.
TECHNICAL FEATURES
| Model | Lifting height | Capacity | Height with closed frame |
|---|---|---|---|
| 260 N | 2600 mm | 800 kg | 2050 mm |
| 260 R | 2600 mm | 1000 kg | 2050 mm |
| 300 N | 3000 mm | 800 kg | 2200 mm |
| 300 R | 3000 mm | 1000 kg | 2200 mm |
| 340 N | 3400 mm | 800 kg | 2500 mm |
| 340 R | 3400 mm | 1000 kg | 2500 mm |
| Tank model | Capacity | Tank internal | Total width | Height on loading side |
|---|---|---|---|---|
| MA | 550 L | 1000 mm | 1200 mm | 850 mm |
| MB | 750 L | 1000 mm | 1200 mm | 950 mm |
| LB | 860 L | 1500 mm | 1350 mm | 950 mm |
PHOTO GALLERY
