Intervine hoeing disc

Intervine hoeing disc

DESCRIPTION

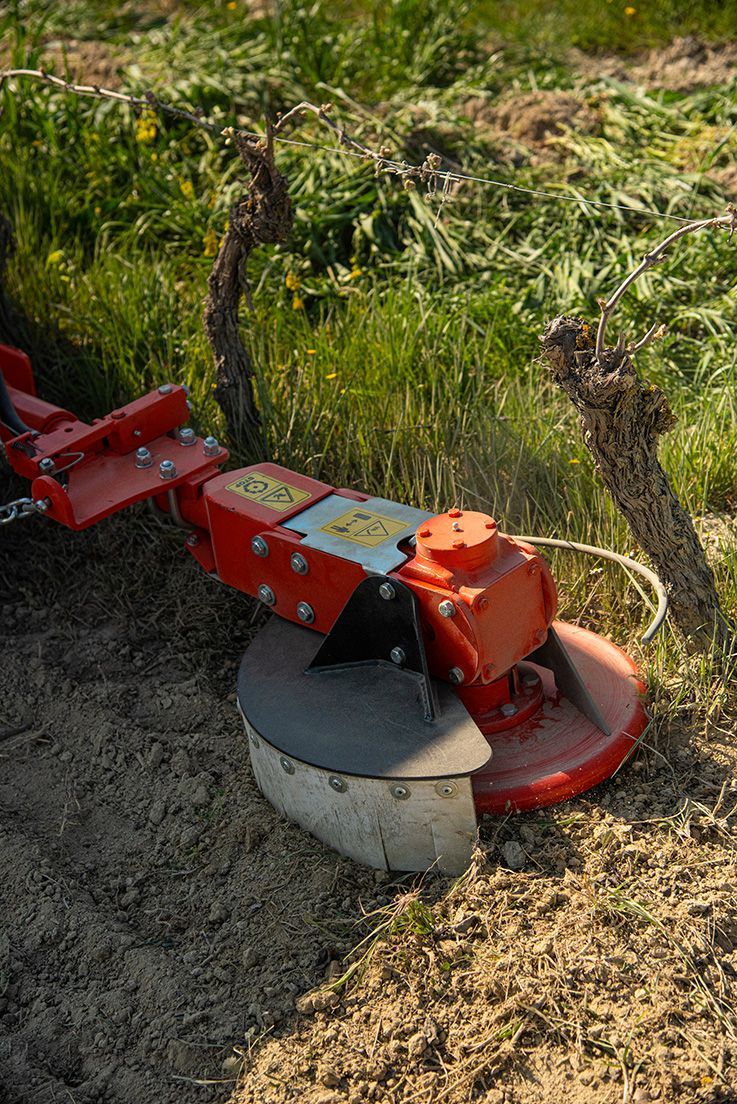

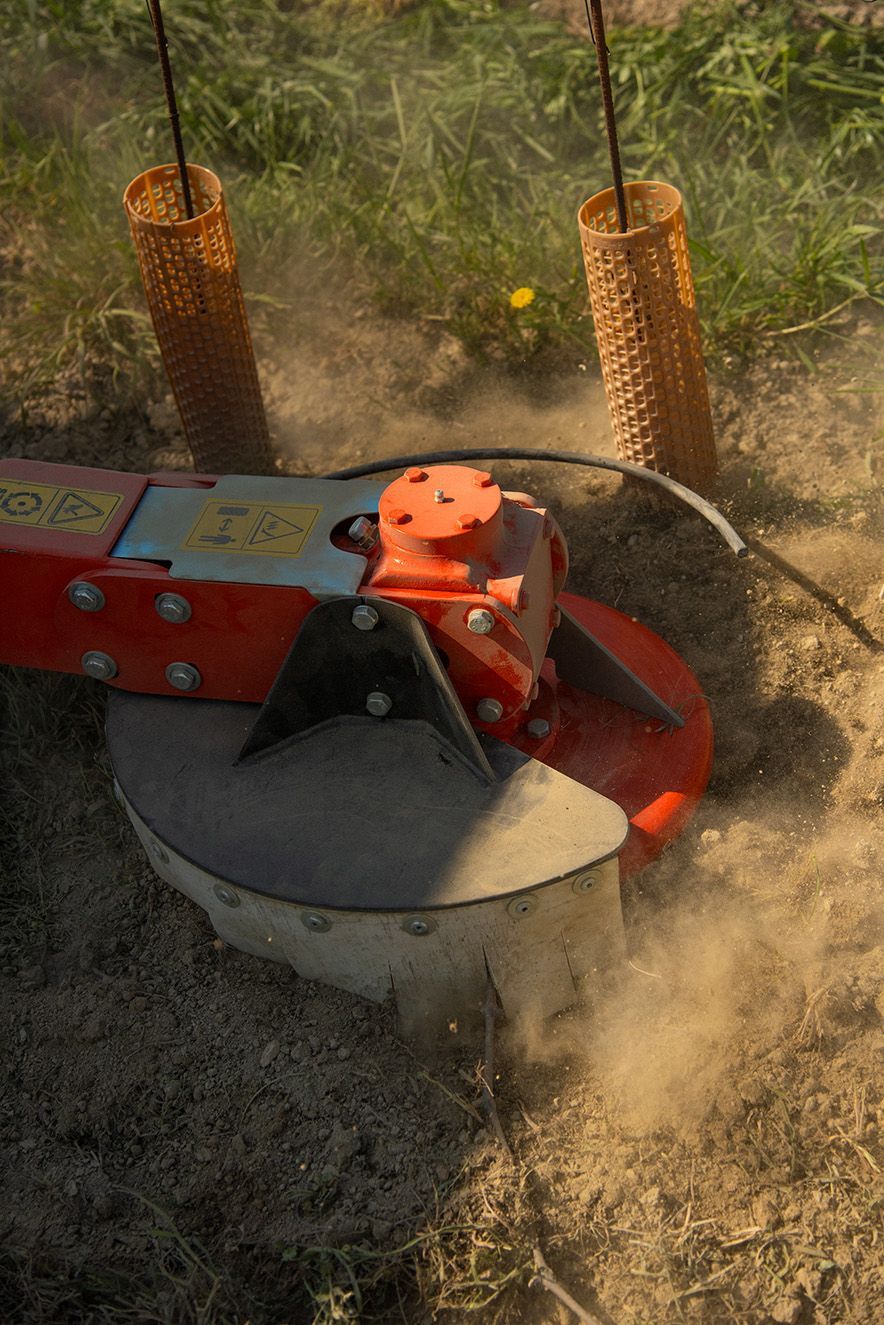

Equipped with independent hydraulic system. The sensor allows movement between the vine stumps even at close range. Disc tiltable hydraulically in both directions.

It allows working in systems with very low strains, without damaging the fruit. Suitable for working on hills and stony ground. Three-point linkage to the tractor and electric (or hydraulic) safety command for disc return

TECHNICAL FEATURES

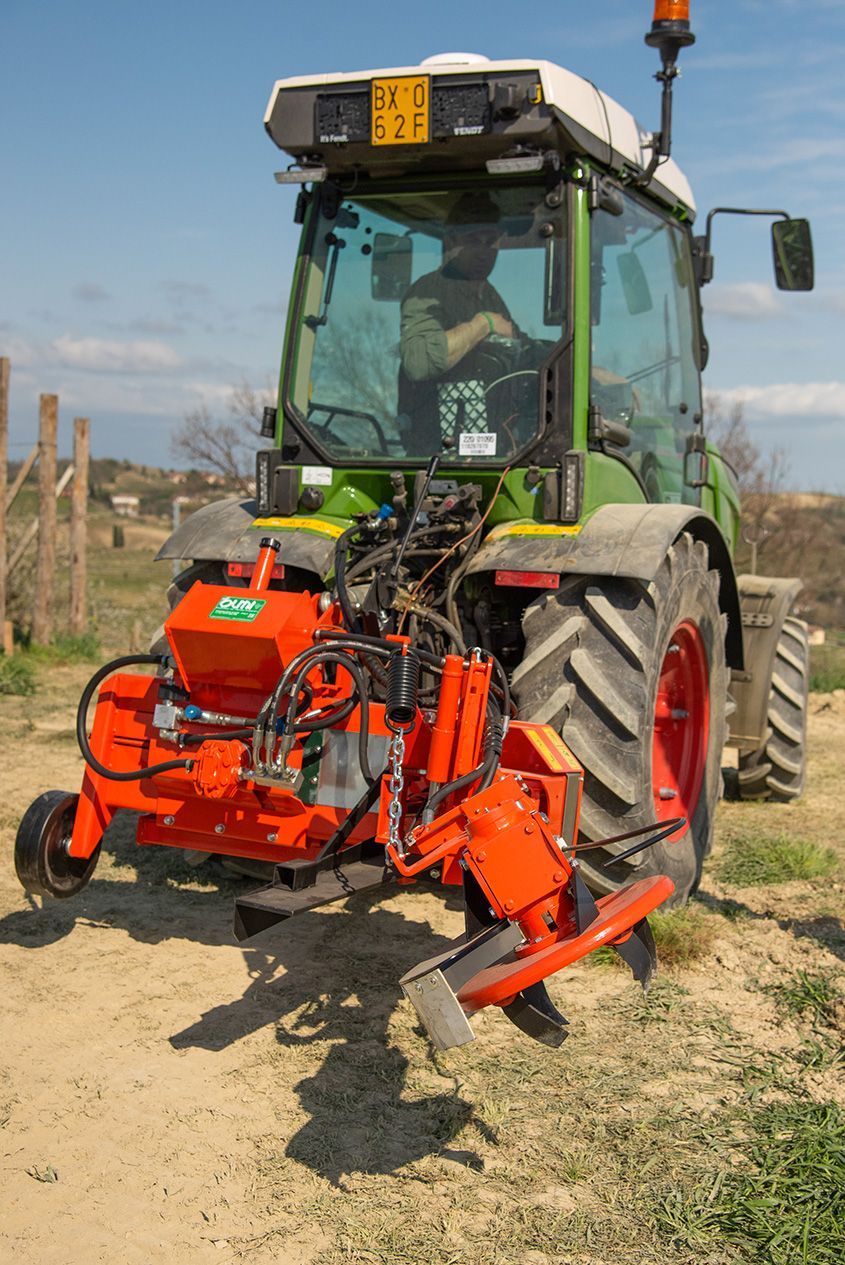

  • Equipped with independent hydraulic system
  • The keypad allows you to move between the logs even at close range
  • Disc hydraulically tiltable in both directions

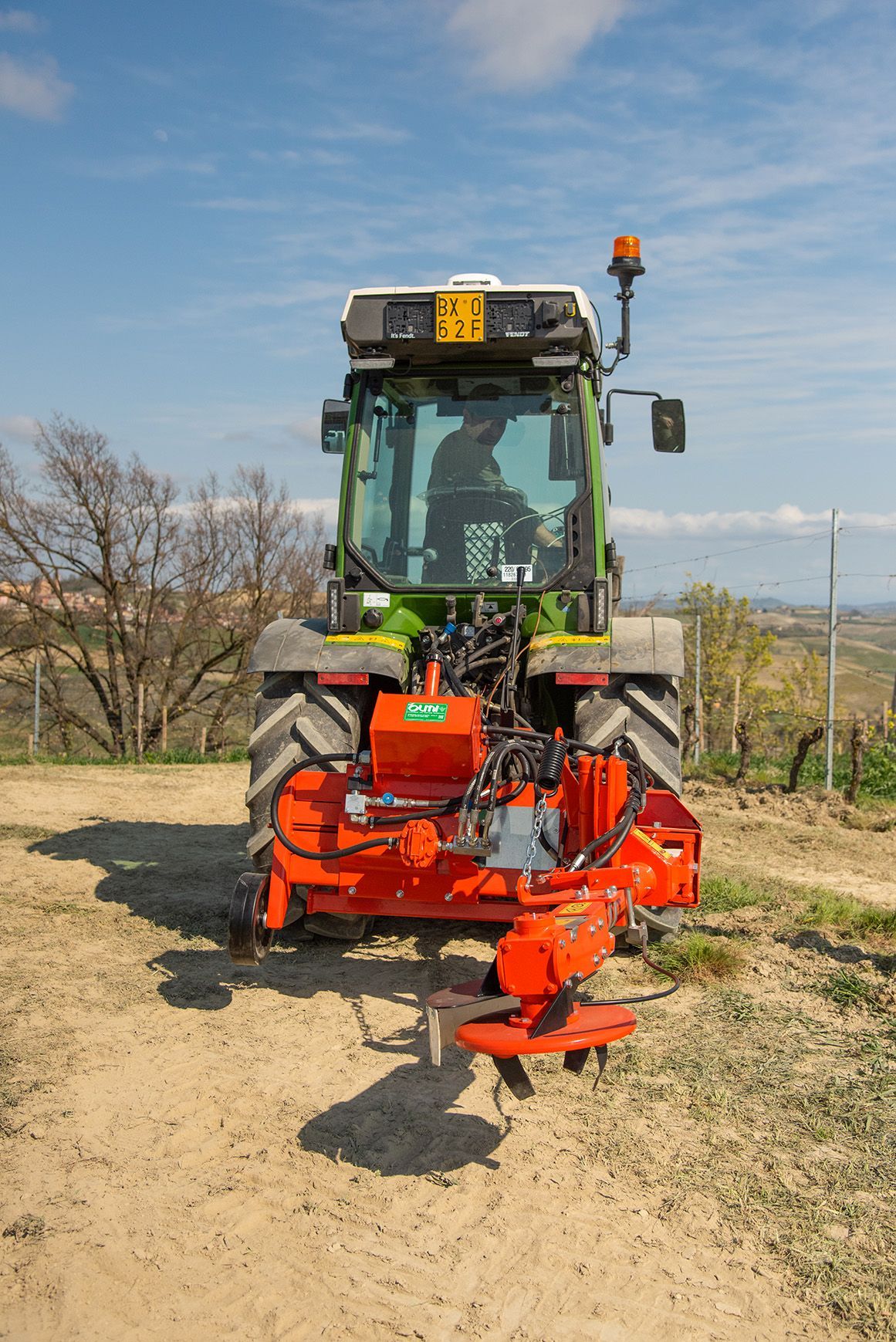

  • Three-point attachment to the tractor
  • Electric (or hydraulic) safety control for disc return

AVAILABLE MODELS

Model Tractor width min. – max
A50 type From 900 to 1100mm
A60 type From 1100 to 1300mm
A70 type From 1300 to 1500mm
A80 type From 1500 to 1700mm
A90 type From 1700 to 1900mm
A100 type From 1900 to 2100mm

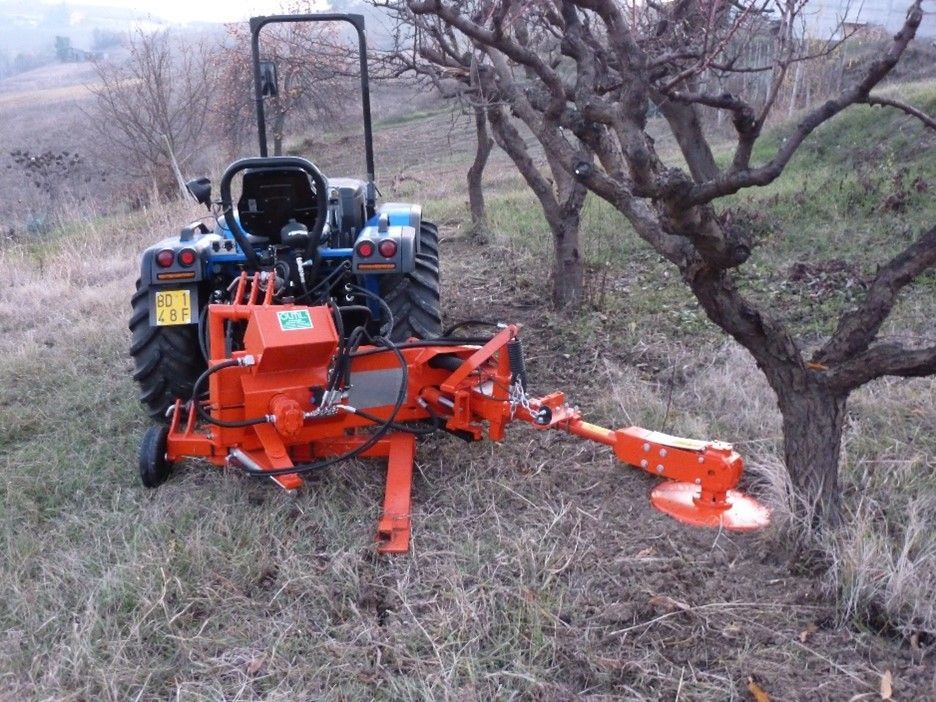

ARBO type Model for orchard- Frame with double joint

TECHNICAL DATA

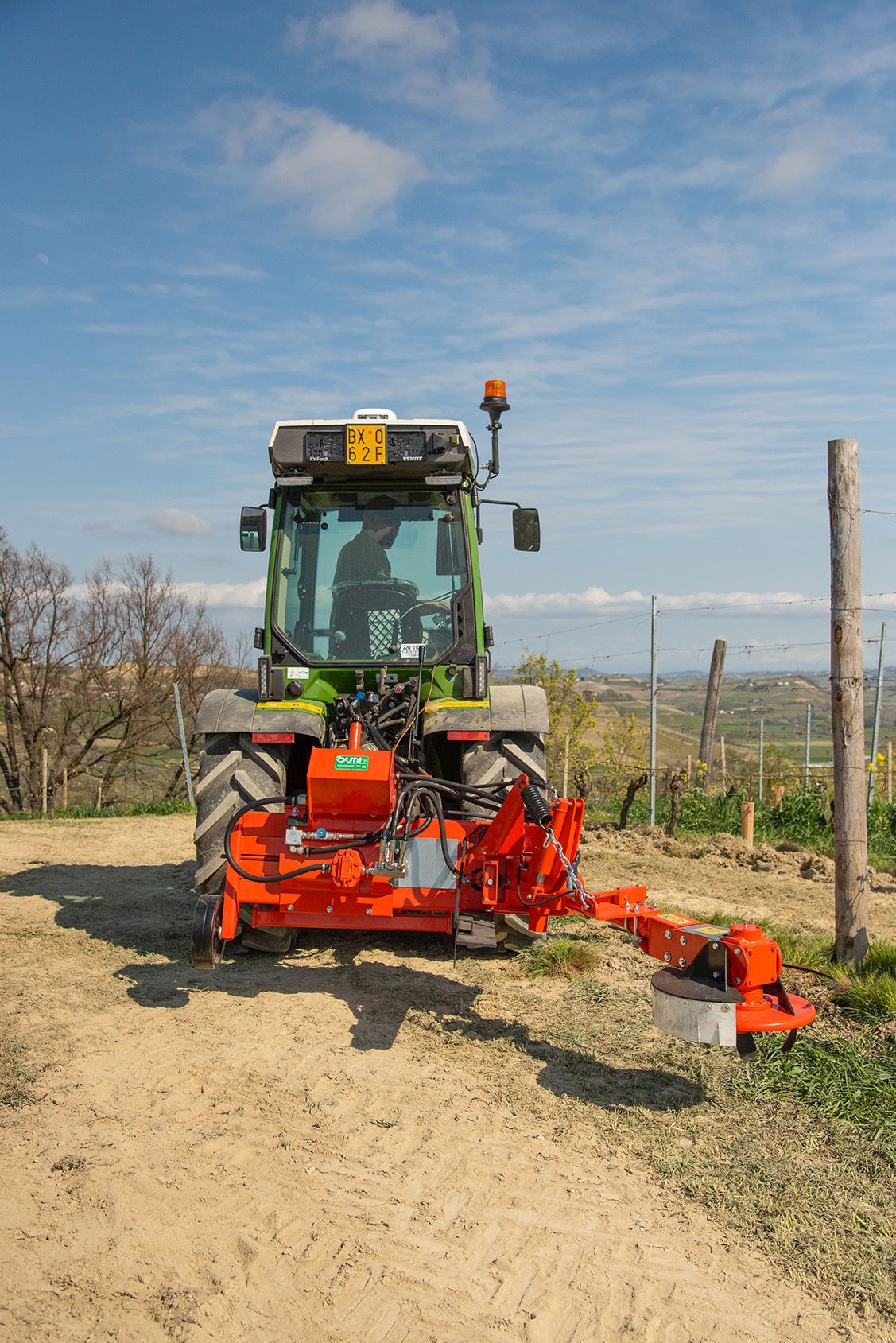

Side shifting 600 mm
Disc rotation speed 350 rpm
Disc tilting 45°
Absorbed power 40 HP
Required hydraulic system 30 L/min

ARBO for orchards, with side shifting of 2000mm from tractor centre to centre of the disc

Accessories

PHOTO GALLERY

VIDEO
