Burying fertilizer, ripper model type R
Ripper model type R
Equipped with 1 RIPPER (or more) to bury the fertilizer and for soil working.
TECHNICAL FEATURES
| Hitching type | 3 point |
|---|---|
| Engine power | from 10 to 12 HP for each tip |
| Working deepness di lavoro | Adjustable with wheels, from 100 to 300mm |
| Deepness | For the fertilizing work a deepness of 150mm is suggested |
| Fertilizer dosage | Manually adjustable or with hydraulic closing system |
| Max. Height | 1200 mm |
TECHNICAL FEATURES
| Model | Max. width | Description | Tank width | Weight at empty | Lt. tank |
|---|---|---|---|---|---|
| C100R1 | 1050 mm | 1 tip, 1 outlet | 860 mm | 222 Kg | 200 |
| C100R2 | 1050 mm | 2 tips, 2 outlets | 860 mm | 222 Kg | 200 |
| C100R3 | 1050 mm | 3 tips, 2 outlets | 860 mm | 222 Kg | 200 |
| C120R3 | 1250 mm | 3 tips, 2 outlets | 1060 mm | 235 Kg | 240 |
| C140R2 | 1450 mm | 2 tips, 2 outlets | 1260 mm | 277 Kg | 300 |
| C160R2 | 1650 mm | 2 tips, 2 outlets | 1460 mm | 292 Kg | 350 |
| C180R2 | 1850 mm | 2 tips, 2 outlets | 1660 mm | 307 Kg | 400 |
| C200R2 | 2050 mm | 2 tips, 2 outlets | 1860 mm | 322 Kg | 450 |

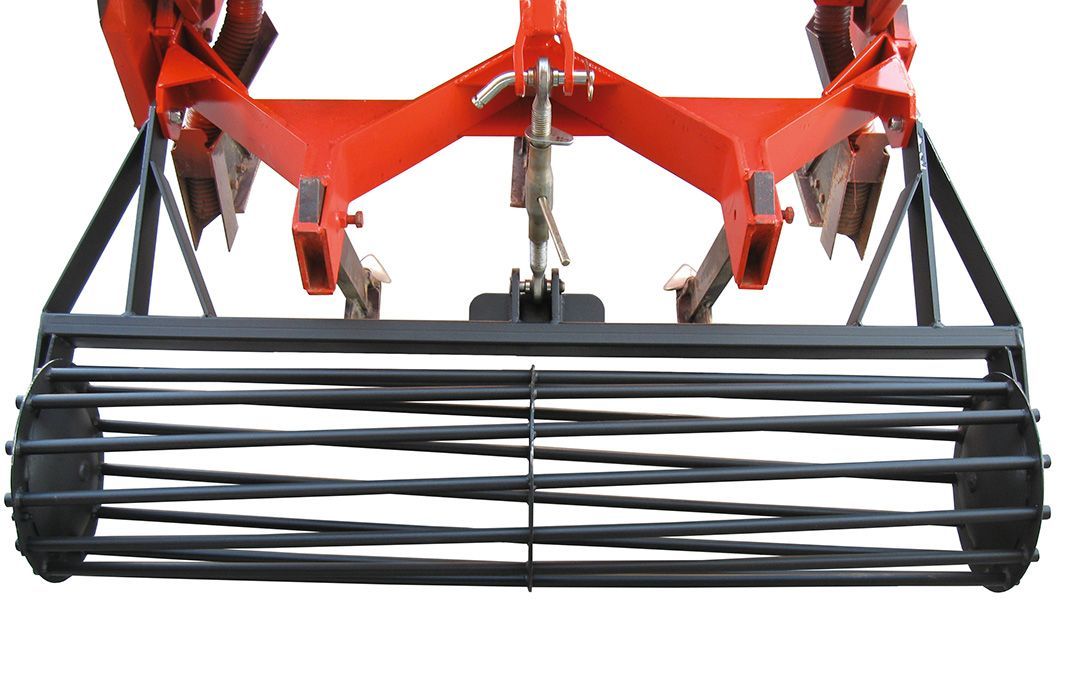

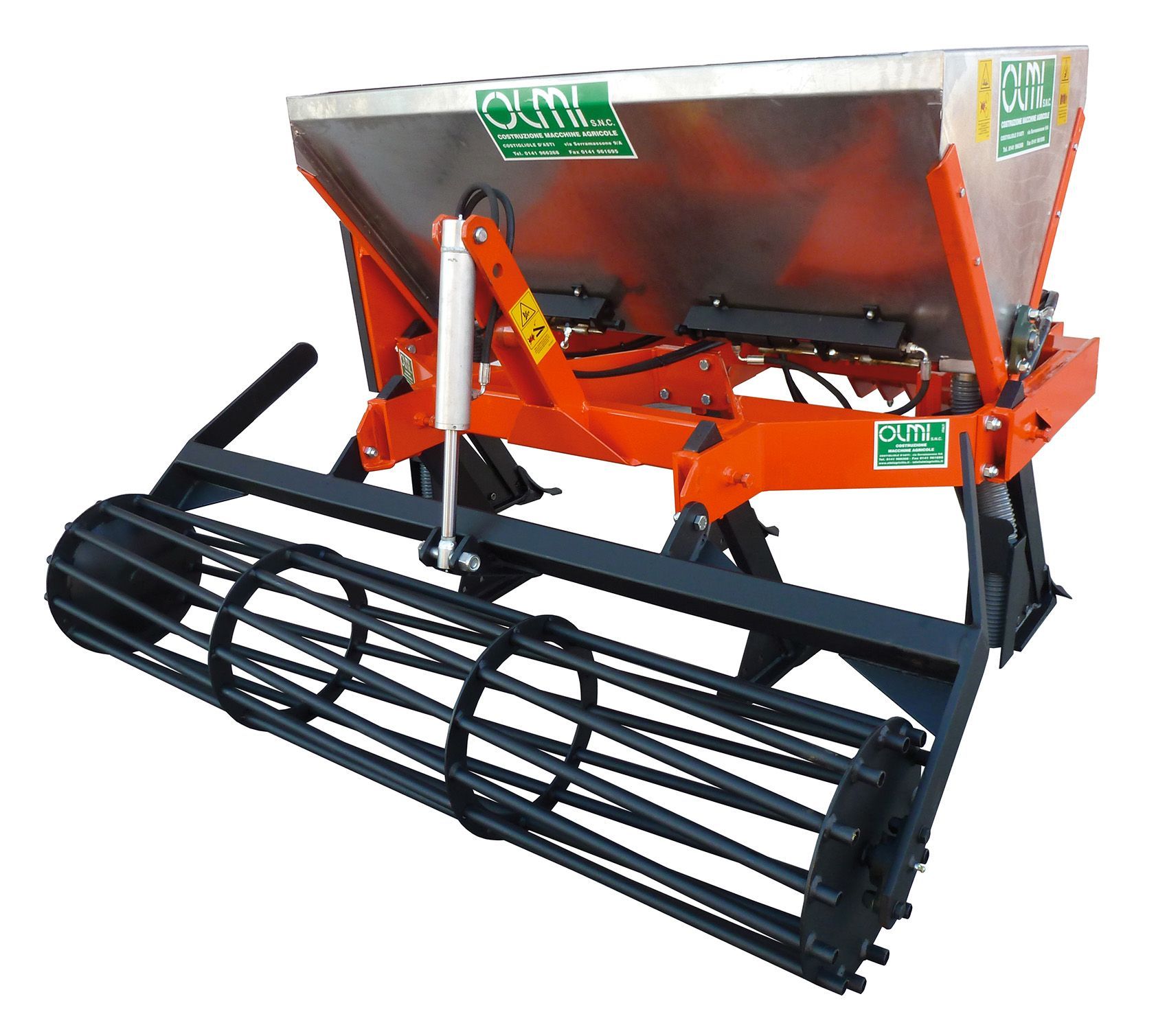

PHOTO GALLERY
