545-VR BUTTERFLY, Pneumatic orchard deleafers

Twenty years of experience in pneumatic leaf removers.

New air diffuser: greater performance, lower consumption

Why choosing us?

Because we were the first to use the technology of pneumatic defoliation on apples and orchards

545-VR BUTTERFLY

DESCRIPTION

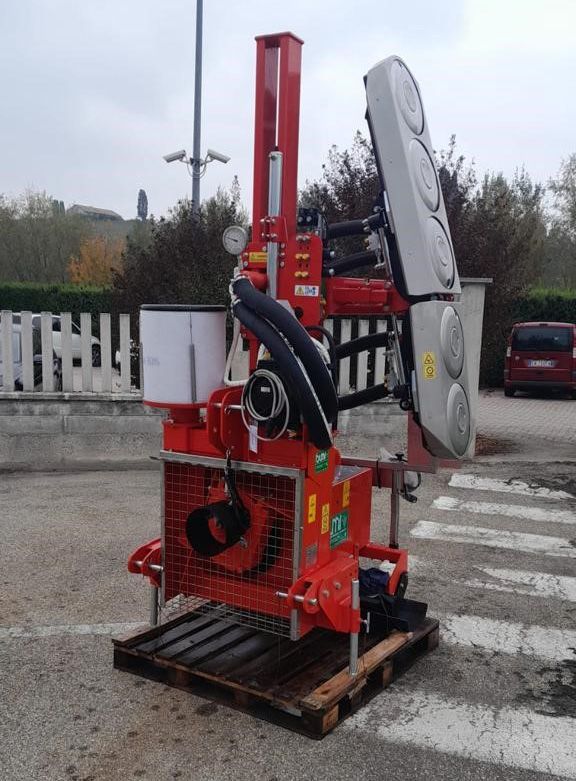

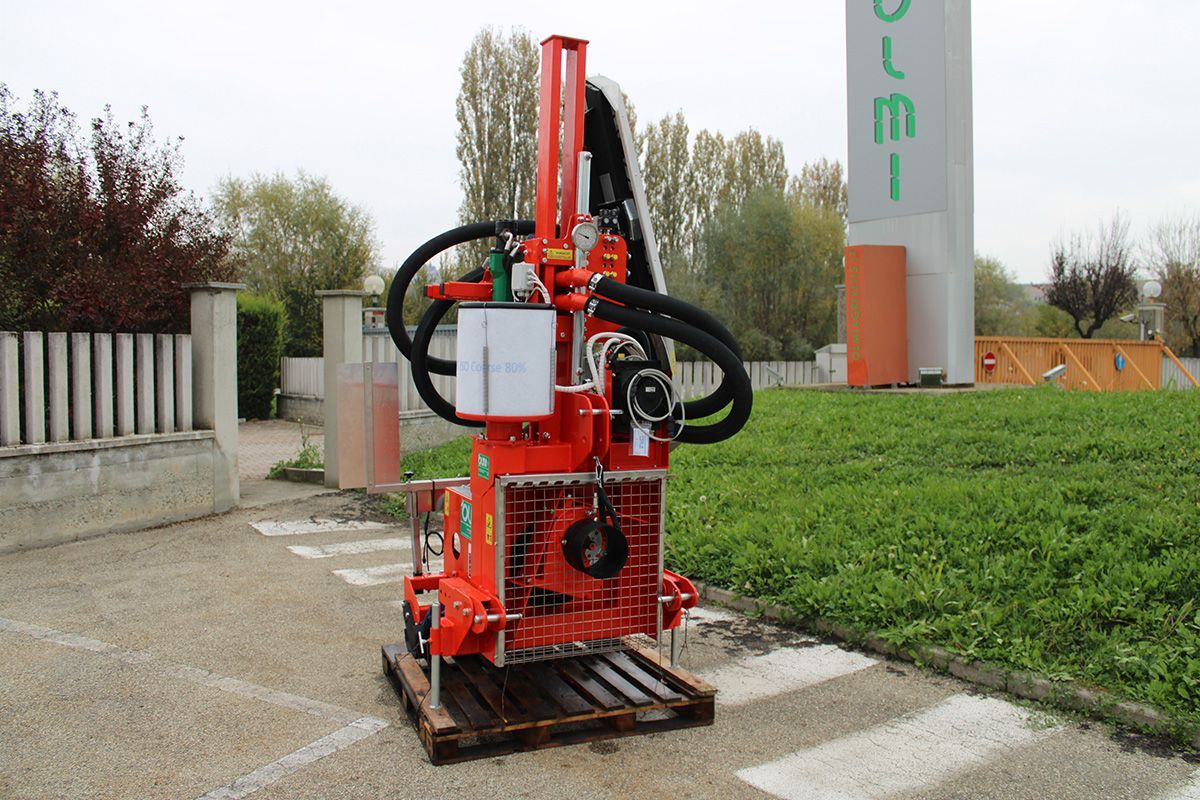

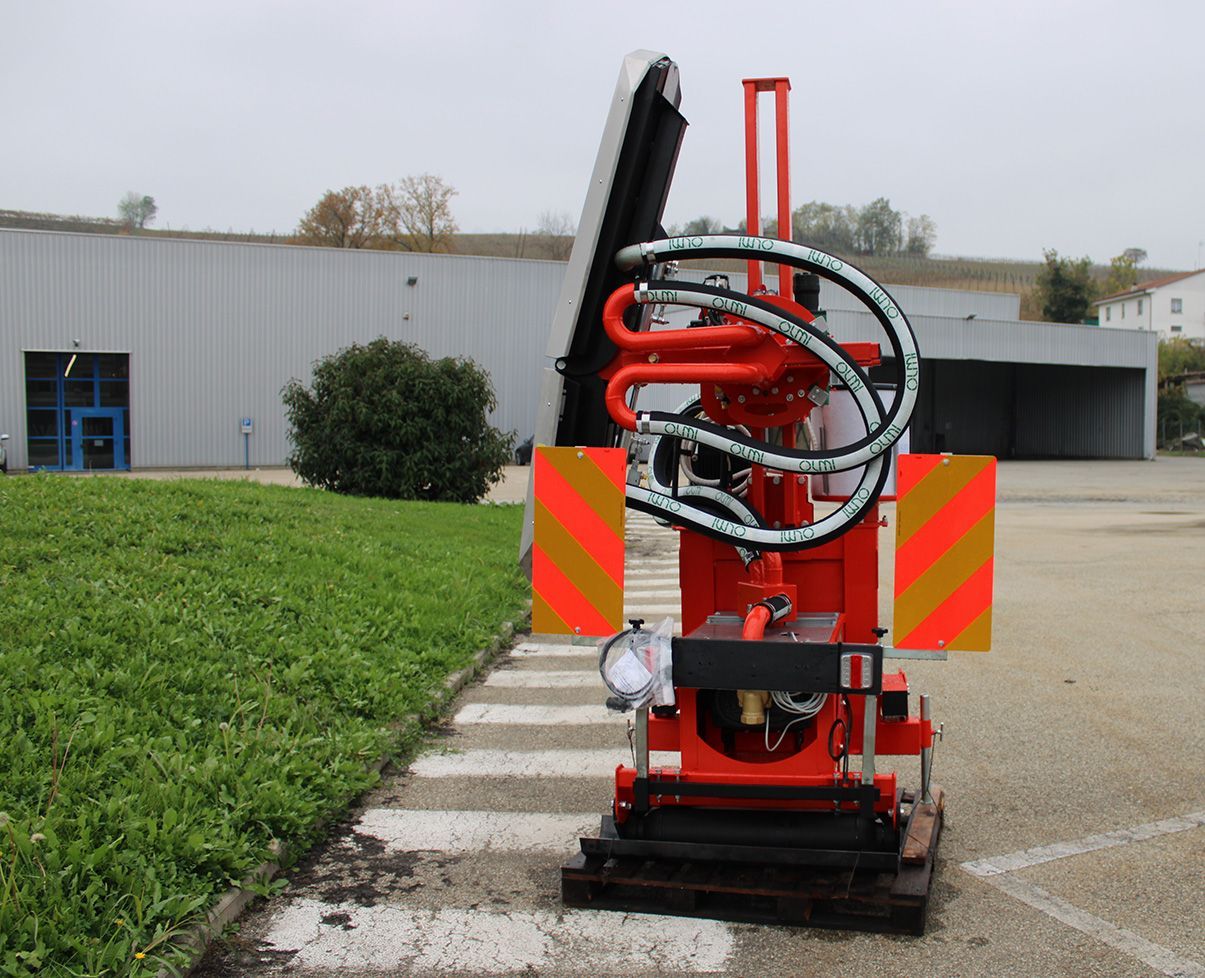

Hind pneumatic deleafer with 1 head and 5 rotors. New split head in order to adapt at the best for all working conditions. Hind compressor unit on the 3 point hitching on the back of the tractor, 3 hydraulic movements with electrohydraulic joystick, 30° frame tilting, leaning wheel and cardan.

TECHNICAL FEATURES

Min. required tractor power	80 HP
PTO	750 rpm
Weight	700 Kg
Working area of head	1750 mm
Working speed	from 1,5 to 2 Km/h depending on the working conditions
Working pressure	from 0,5 to 0,9 bar (adjustable with tractor’s PTO)

DESCRIPTION

The Olmi deleafer model VORTEX has been designed especially to ensure an effective and targeted removal of the unnecessary leaves in apple orchards, without harming the apple tree. VORTEX is based on the Precision Air Stream Technology, developed in more than 20 years of experience in vineyard deleafing. This system is characterized by the emission of an adjustable low pressure air flow delivered through the rotating disc nozzles.

Besides deleafing, VORTEX also enables to blow away possible hidden impurities ( nests, pests) reducing the discards during the fruit processing phase. Targeted deleafing operated by VORTEX considerably increases apple’s sunlight exposure and proved to be particularly effective in improving the colour intensity especially on red varieties, such as: Pink Lady, Fuji, Gala, Kanzi, Ambrosia, Rosy Glow, RockIt, Evelina, El Star...
