504-F, Pneumatic orchard deleafers

Twenty years of experience in pneumatic leaf removers.

New air diffuser: greater performance, lower consumption

Why choosing us?

Because we were the first to use the technology of pneumatic defoliation on apples and orchards

504-F

DESCRIPTION

Front pneumatic deleafer with 4 bilateral heads (2 left + 2 right) work on 2 half rows, 8 hydraulic movements with electro-hydraulic joystick, compressor unit on the back of the tractor on the 3 point hitching system of the tractor, oil cooling kit. Front

TECHNICAL FEATURES

Min. required tractor power	100HP
PTO	750 rpm
Weight	1200kg
Frame tilting	30°
Working area of head	1400 mm (for each side)
Working speed	from 1,5 to 2 Km/h depending on the working conditions
Working pressure	from 0,5 to 0,9 bar (adjustable with tractor’s PTO)

DESCRIPTION

The Olmi deleafer model VORTEX has been designed especially to ensure an effective and targeted removal of the unnecessary leaves in apple orchards, without harming the apple tree. VORTEX is based on the Precision Air Stream Technology, developed in more than 20 years of experience in vineyard deleafing. This system is characterized by the emission of an adjustable low pressure air flow delivered through the rotating disc nozzles.

Besides deleafing, VORTEX also enables to blow away possible hidden impurities ( nests, pests) reducing the discards during the fruit processing phase. Targeted deleafing operated by VORTEX considerably increases apple’s sunlight exposure and proved to be particularly effective in improving the colour intensity especially on red varieties, such as: Pink Lady, Fuji, Gala, Kanzi, Ambrosia, Rosy Glow, RockIt, Evelina, El Star...

ADVANTAGES

Selective defoliation of the orchards without any damages on the fruits.
Higher value of the harvested apples because of the higher colour percentage
Removes any manual work, and use of reflective materials.

use

During the maturation process (from 25 to 7days before harvest): the removal of the leaves allows to increase the colour percentage and so of the apple’ s quality, with consequent financial benefit.

Accessories

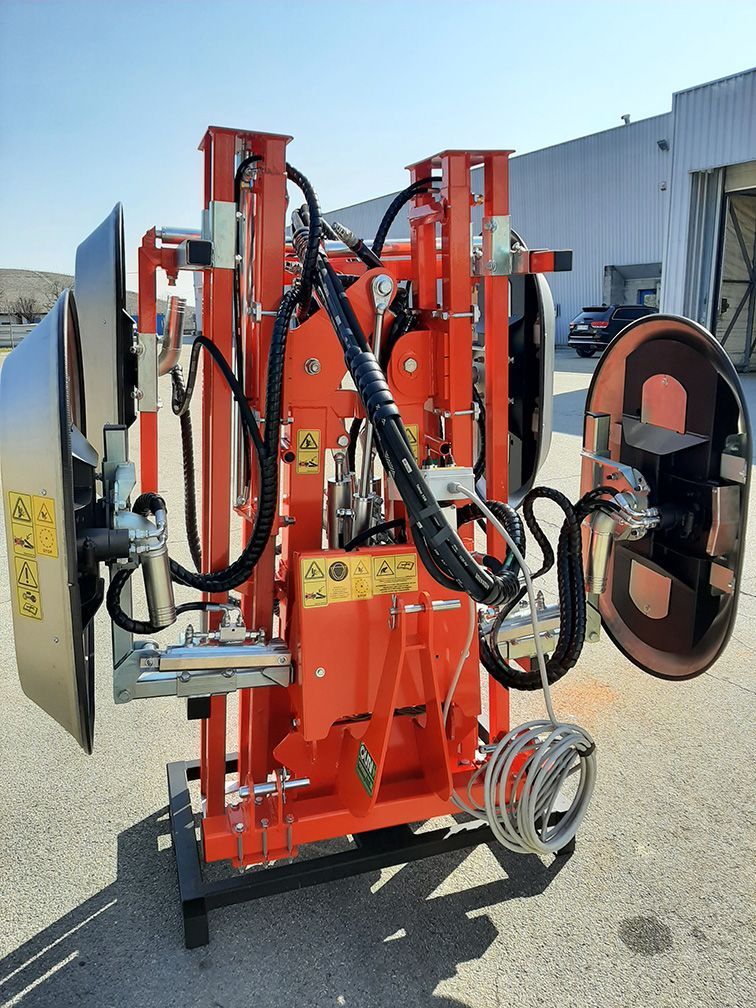

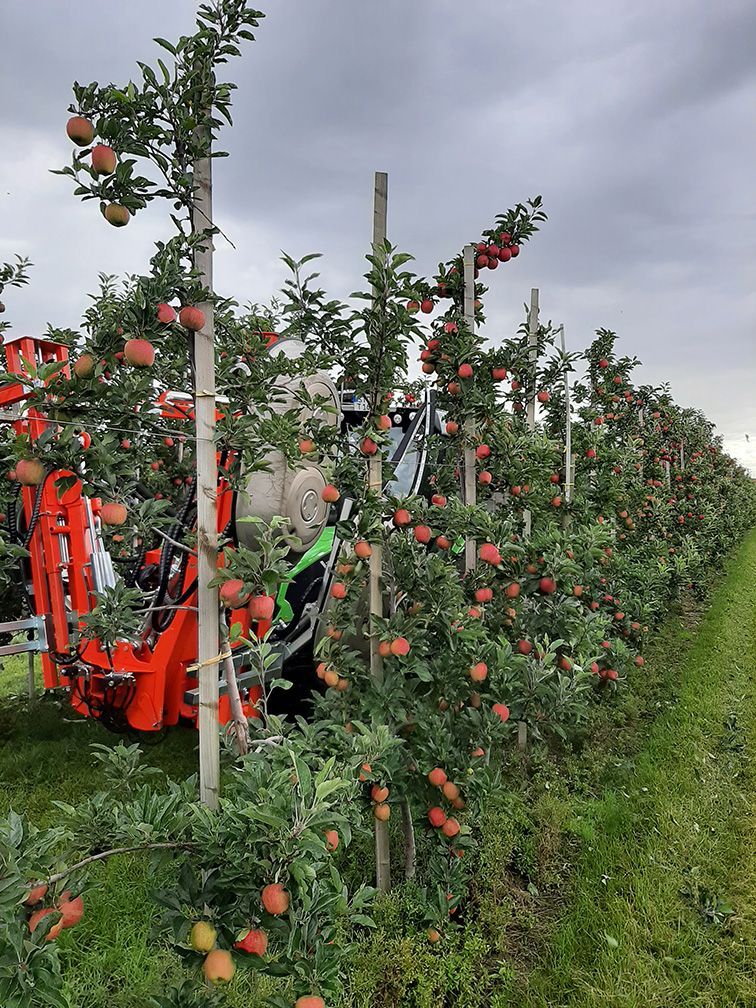

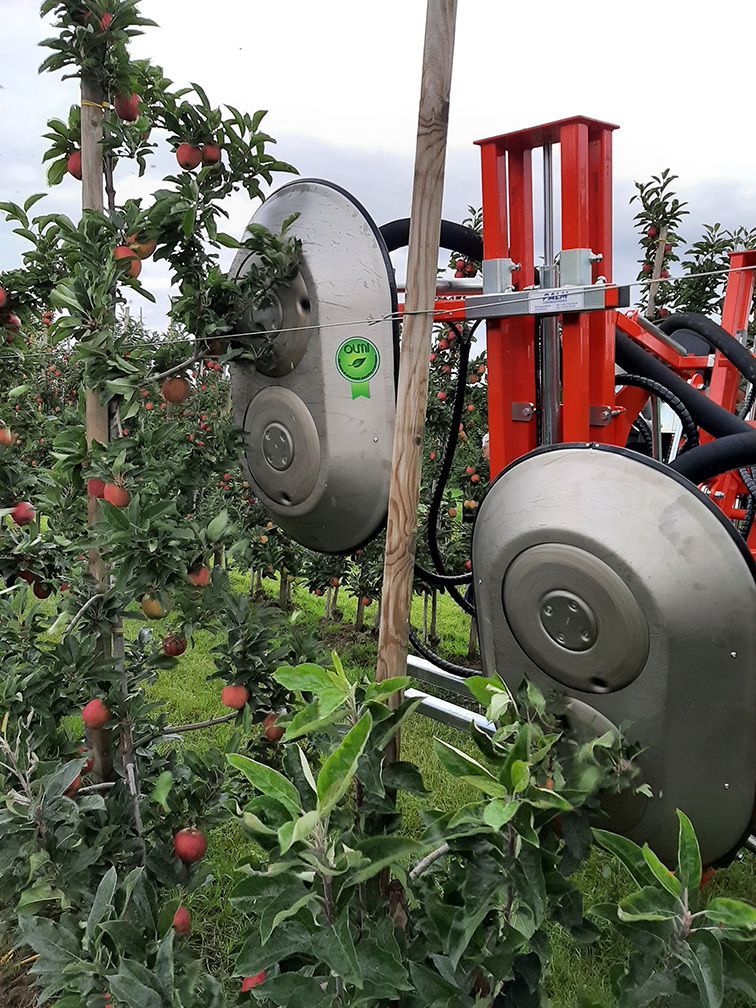

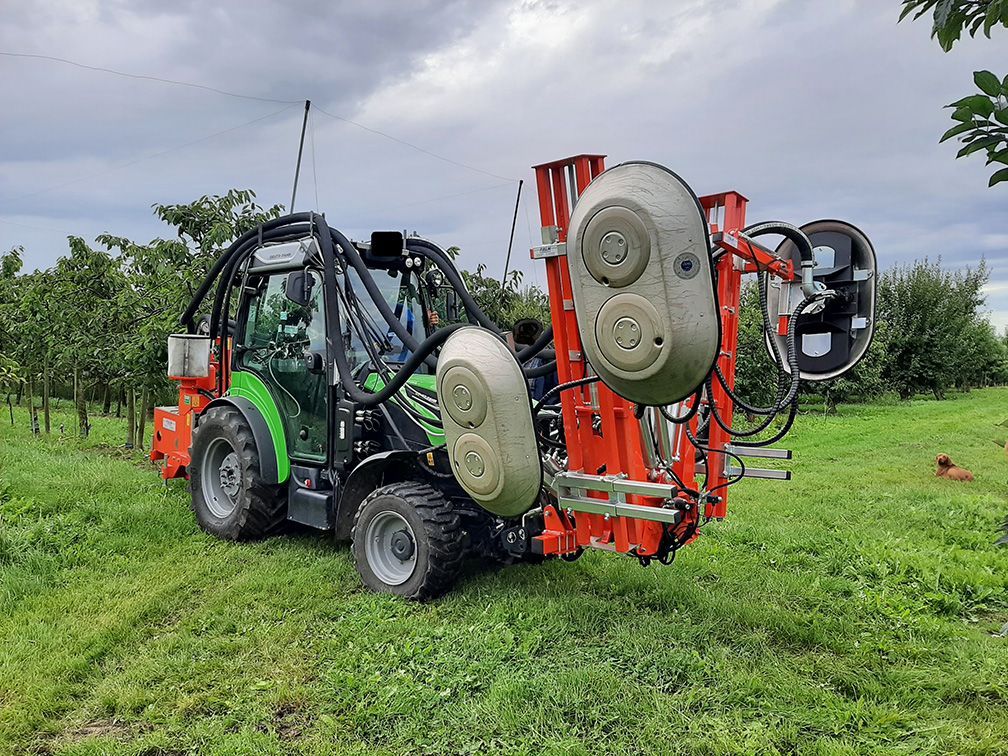

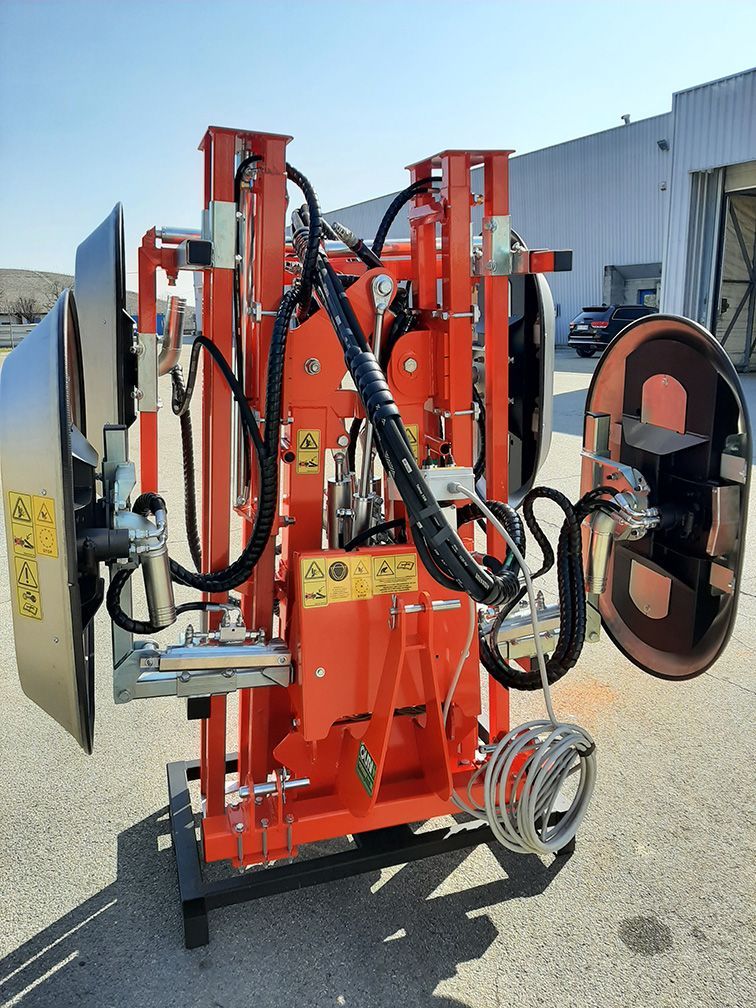

PHOTO GALLERY
